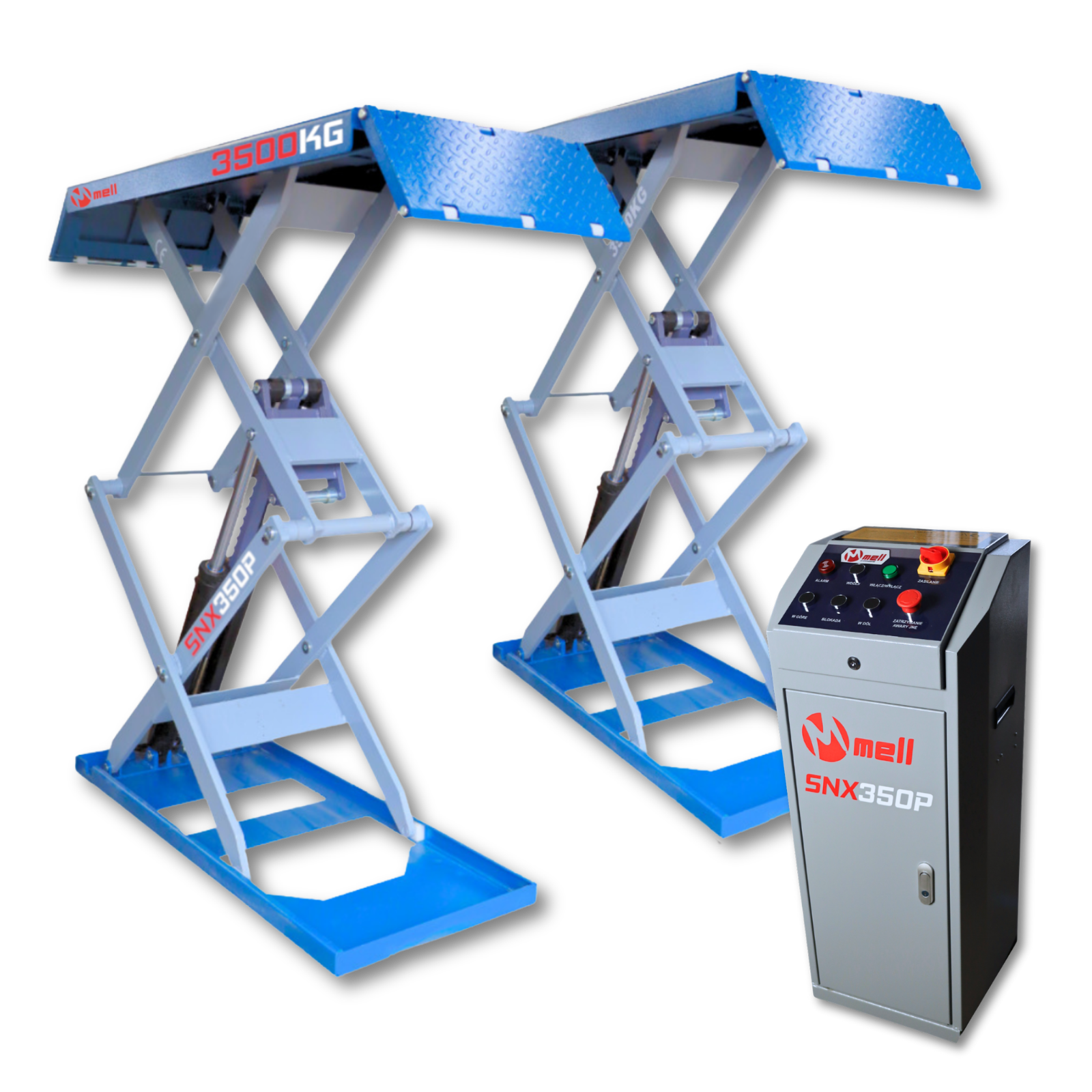

SNX350P – 3.5T MELL PRO UNDERFLOOR SCISSOR LIFT

Description

Characteristics of the MELL PRO elevator:

• Electro-hydraulic lift with 4 cylinders, pneumatic ratchets,
• Compact scissor design
• Floor mounting (height 110mm)
• Controlling the 24V protected elevator from an external control box
• Hydraulic safety devices in case of sudden oil leakage or overloading
• Sensors for extreme and safe position of platforms
• Sound signal of the descent phase

Installation requirements:

• • Concrete strength: 2.1 kg/mm2 or B25
  • Thickness of the floor under the elevator: min. 150 mm
  • Recommended dimensions of the floor: min. 2500×2500 mm
  • Permissible floor irregularity: +/- 5 mm
  • Floor execution: 3 weeks prior to installation
  • Mounting anchors: diameter ø16, length 120mm, 16 pcs.
  • Hydraulic oil: HL22, 18.0 L
  • Electrical power supply: 5×2.5 mm2 cable brought to the installation site
  • Power supply: pneumatic
  • Current protection: min 6 a with 1-phase 230V/50Hz power supply
  • Installation only allowed indoors
