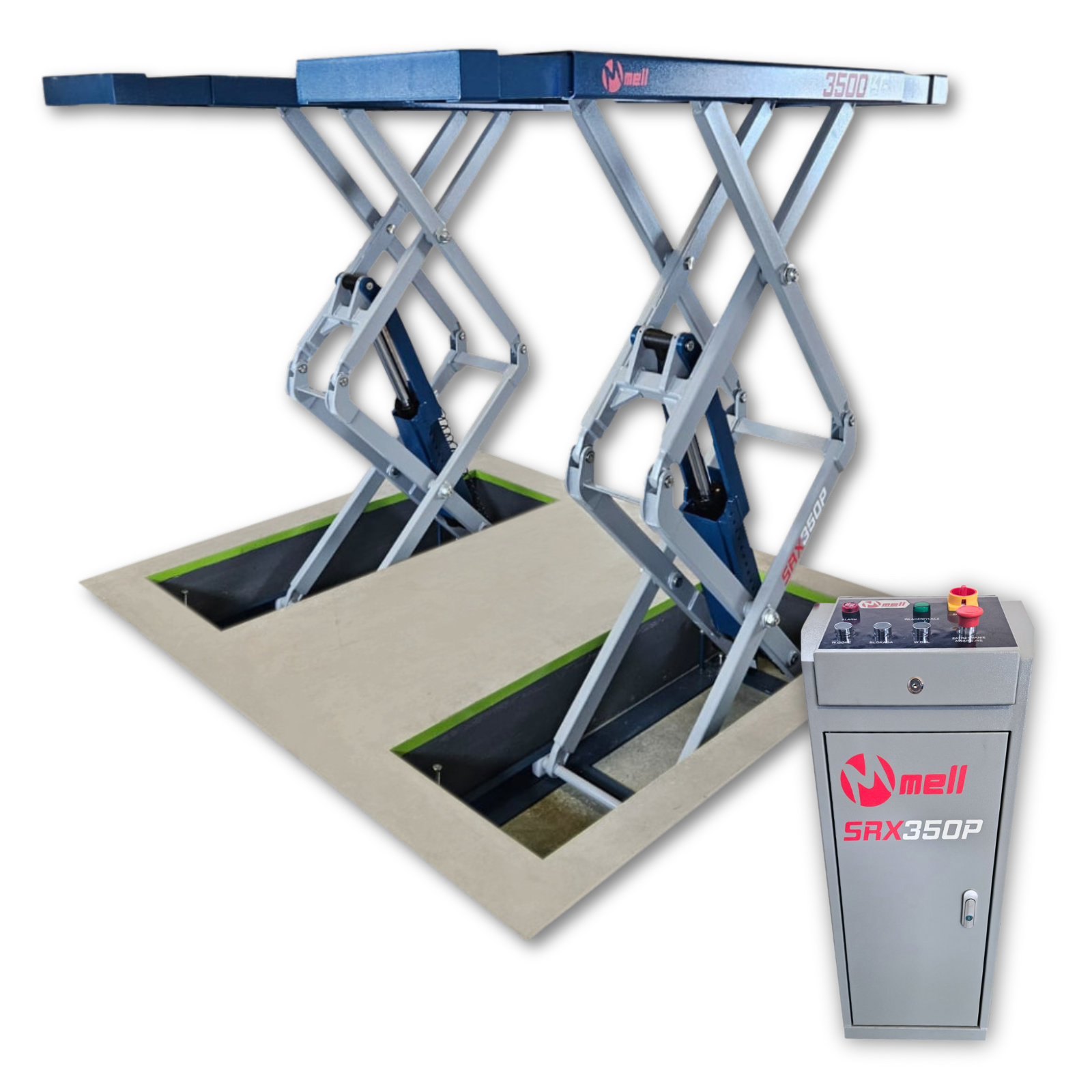

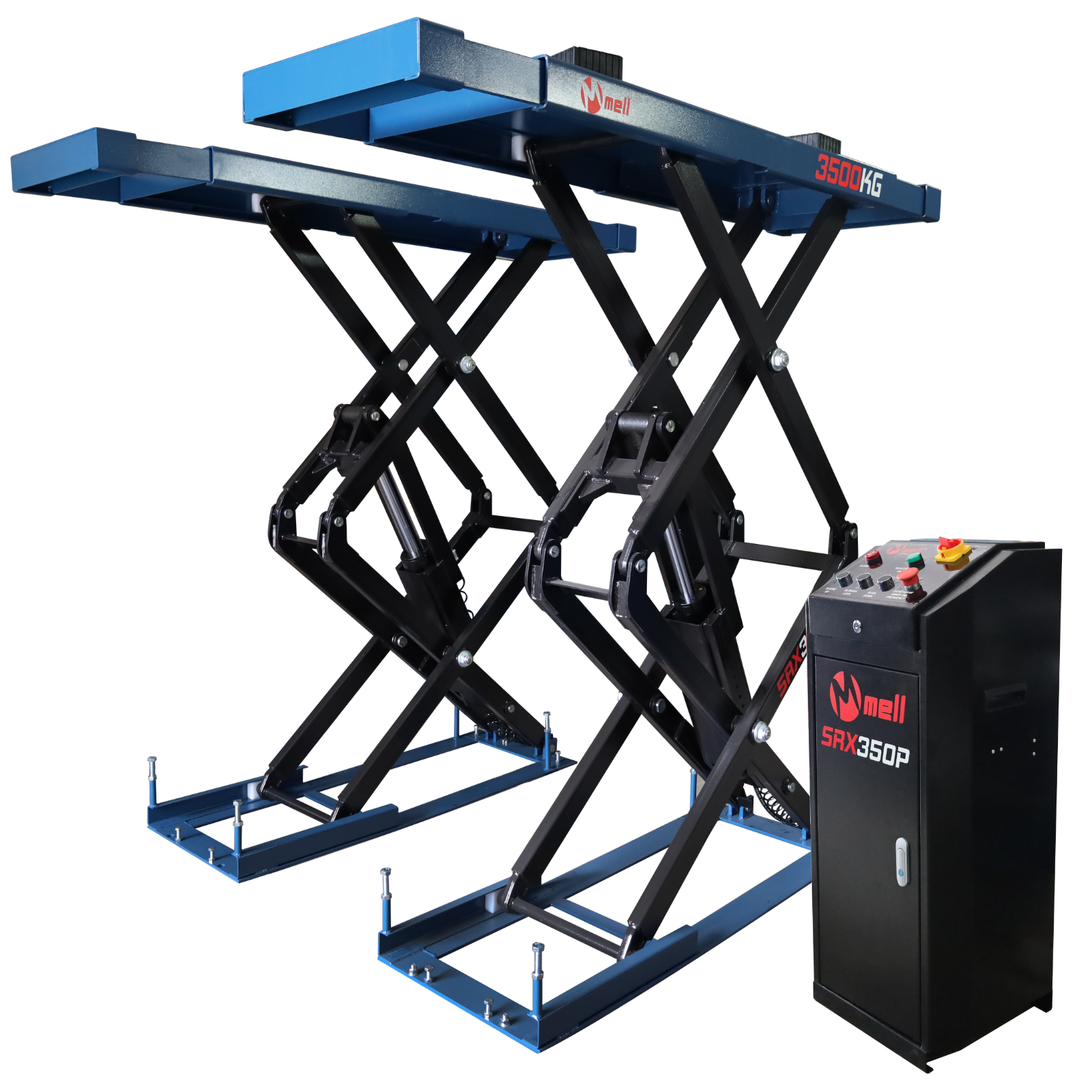

SRX350P – 3.5T MELL PRO UNDERFLOOR SCISSOR LIFT

Description

Characteristics:

• Lift designed for moat installation with mechanical, pneumatically activated height lock.
• control of the lift with safe voltage of 24V from the external control box
• Hydraulic safety devices in case of sudden oil leakage or overloading
• Sensors for the extreme and safe position of platforms. sound signal of the final phase of descent

Floor requirements:

• concrete strength: B25 or C20/C25
• The thickness of the floor under the elevator: min. 150 mm
• permissible floor irregularity: ±5 mm
• floor execution: 3 weeks before installation
• Mounting anchors: diameter ø16 mm, length 120 mm, 8 pcs.
• hydraulic oil: HL22, 18.0 L
• electrical supply: cable 5x 2.5 mm2 brought to the place of installation
• Pneumatic supply: dried and oiled air, min. 6 bar (max 10 bar)
• current protection: min. 16 A at 3-phase 400V/50 Hz power supply
• installation only allowed indoors !
